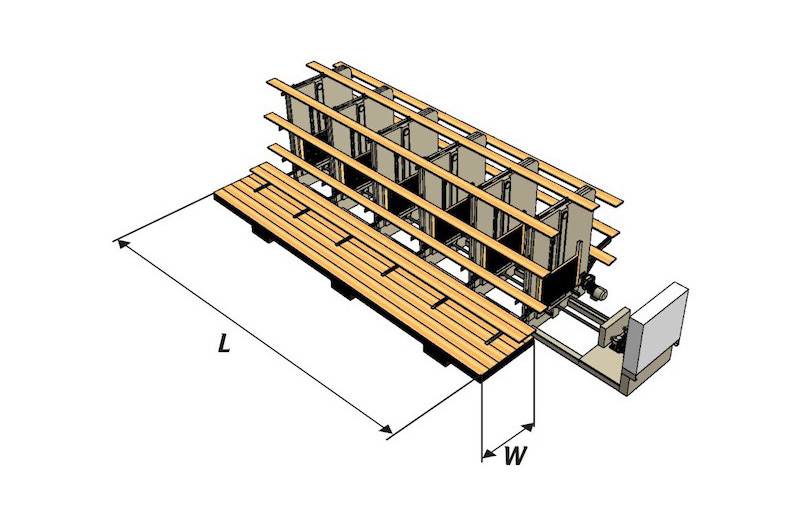

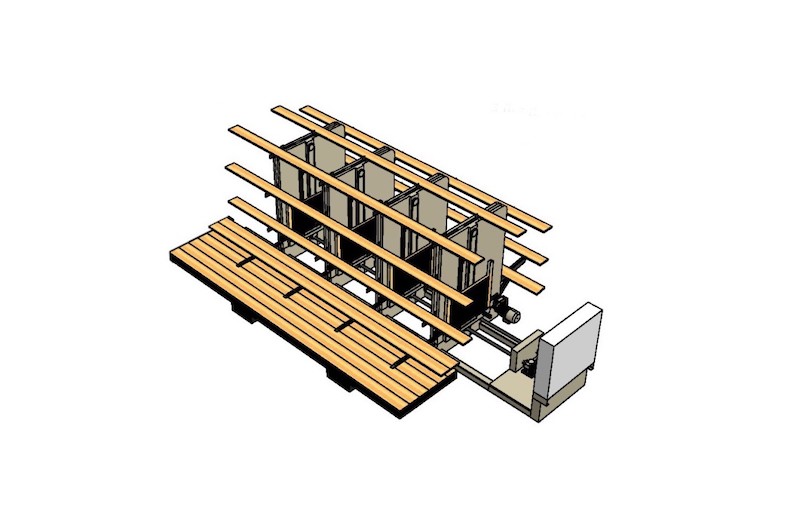

Stacker ST-1200

Handling
Request Quotation

18' Wood Stacker

24' Wood Stacker

Technical Specifications

Infeed Speed
20-34 pieces/min
Heads
2-6 according to congif. & length
Power Unit of 2 Heads
2 Kw
Extra Power per Head
0.5 Kw

Optional

Adjustable Heads (Width)
Stacking Strips

Wood Dimension

Length (min/max)
1200-7200 mm
Thickness (min/max)
10-150 mm
Width (min/max)
20-250 mm

Dimensiones Apilado

Height (max)
1200 mm
Width (max)
800-1200 mm
Length
1200-7500 mm

Request Quotation

Fill out the form to recieve a formal quotation.
